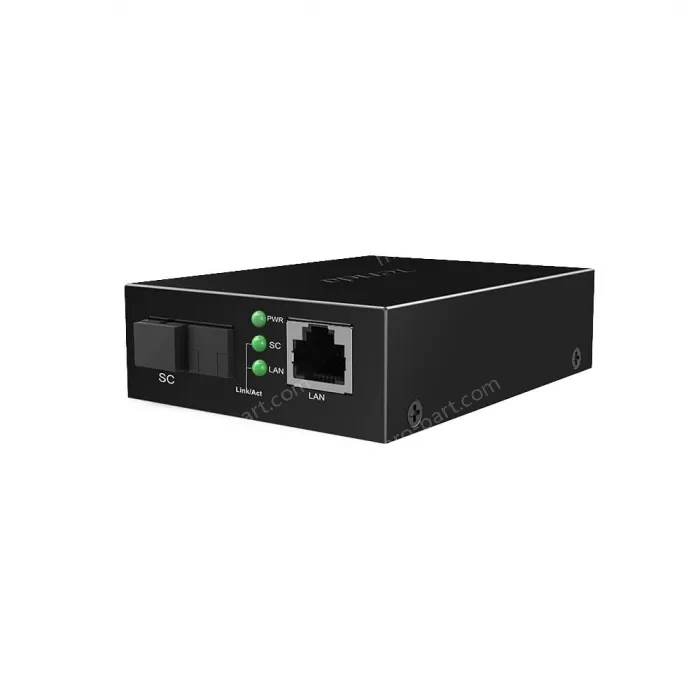

TFC100A is a 100Mbps single-mode & Single-fiber media converter, which can implement mutual conversion between electrical signal and optical signal. This type of fiber converter can extend the transmission distance of a network through optical fiber.
TFC100 A adopts the technique of WDM, which can enable the SC optical interface to transmit signal through single-mode and single-fiber. SC optical interface with transmission distance up to 20km can send wavelength of 1550nm (1310nm) and receive wavelength of 1310nm (1550nm) .It can meet the wired transmission requirement with the rate of 100Mbps such as hotel，universities and enterprises etc.
6KV lightning protection
Industrial-grade steel case
High-speed stable extension of wired network
| Model | TFC100A |
| LED indicators | 1 Power LED indicator for each device 1 Link/Ack LED indicator for SC port 1 Link/Ack LED indicator for LAN port |
| Interfaces | 1*100Mbps RJ45 port 1*100Mbps SC ports |
| Operating wavelength | Transmit：1550nm Receive：1310nm |
| Transmission distance | 20km |
| Input voltage | 100-240V～ 50/60Hz |
| Dimensions | 95 mm * 72 mm * 26 mm(L*W*H) |
| Operating environment | Operating temperature: 0°C - 45℃ Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%)RH, non-condensing Storage humidity: (10% - 90%)RH, non-condensing |
