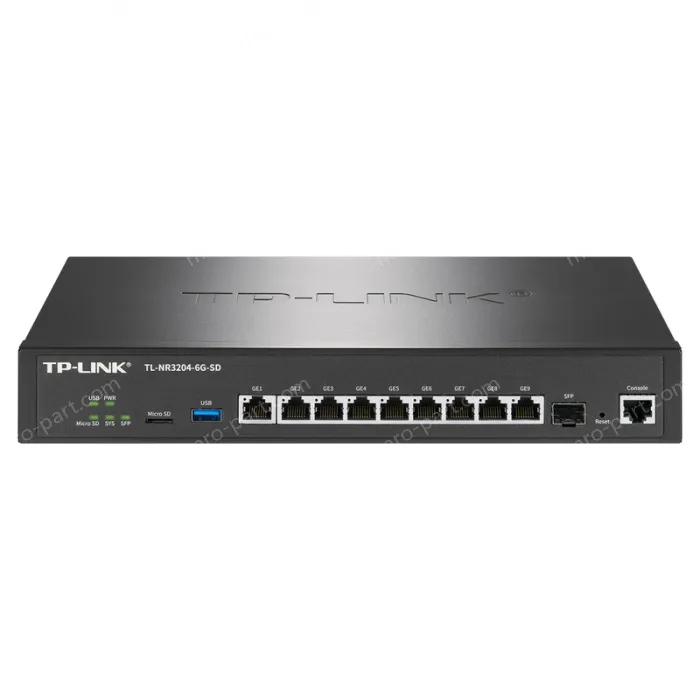

Remote networking routers

1 SFP port, 3 Gigabit WAN/LAN variable ports, and 6 Gigabit LAN ports
1 Micro-SD card slot, 1 USB 3.0, 1 Console port
32MB NOR FLASH, 256MB DDR built into the chip
A typical number of APs is 100 and 50 APs can be managed
SD-WAN throughput: 300 Mbps
Supports 10 IPSec VPN tunnels
Number of supported encrypted tape cameras: 100+
AP management, intranet penetration, IPv6 and other standard CPE functions are supported
It supports LTE expansion function, and can be used with portable WiFi to support 4G networking function

Remote networking routers

Hardware specifications

Port	1 x 1000M SFP WAN/LAN port 3 x 10/100/1000M RJ45 WAN/LAN ports 6 x 10/100/1000M RJ45 LAN ports
Light	Per port: Link/Act Per device: SYS
Enter the power supply	100-240V～ 50/60Hz 0.3A
Heat dissipation	Natural heat dissipation
Use environment	Operating temperature: 0°C~40°C, Working humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C, Storage humidity: 5%~90%RH non-condensing
Typical machine size	100 units
Manage the number of APs	50
Dimensions	294×180×44mm

Software Features

Network protocols	TCP/IP、DHCP、ICMP、NAT、PPPoE、SNTP、HTTP、DNS、H.323、SIP、DDNS
Operational status	Interface information Traffic statistics Hardware resource utilization
Interface settings	WAN settings LAN settings
AP management	AP settings, which can manage 50 TP-LINK AP PRODUCTS IN A UNIFIED MANNER Plug-and-play, wireless network setup Wireless host status
Behavior control	Application control, one-click control of various common application restrictions such as social software, video software, music software, shopping and leisure software, news and information software, P2P software, financial software, online games, app stores, basic applications, etc QQ blacklist and whitelist Website grouping filtering Filter web file types Intelligent bidirectional bandwidth control Access Control Lists (ACLs) Behavioral audits
Security management	ARP Protection (IP+MAC Binding, GARP) MAC address filtering Attack Protection (DoS Attack Protection, Suspicious Packet Attack Protection)
VPN	IPSec VPN throughput: 300 Mbps Supports 10 IPSce VPN tunnels PPTP/L2TP VPN, which supports both server and client modes
Certification management	Web authentication supports local authentication, Radius authentication, and one-click Internet access to meet various authentication requirements SMS authentication meets the requirements of real-name authentication and can be used for secondary marketing based on mobile phone numbers Authentication-free policy
Advanced features	PPPoE authentication server Route Settings (Policy-Based, Static, System-Routed) NAT setup (NAPT, one-to-one NAT, ALG, virtual server, NAT DMZ) DDNS (Peanut Shell, Kemai, 3322) UPnP IP traffic statistics Port monitoring
System tools	Chinese web management, remote management Configure backup and import configurations Software upgrades, automatic cleanup Diagnostic tools (ping detection, tracert detection) System time setting System logs
