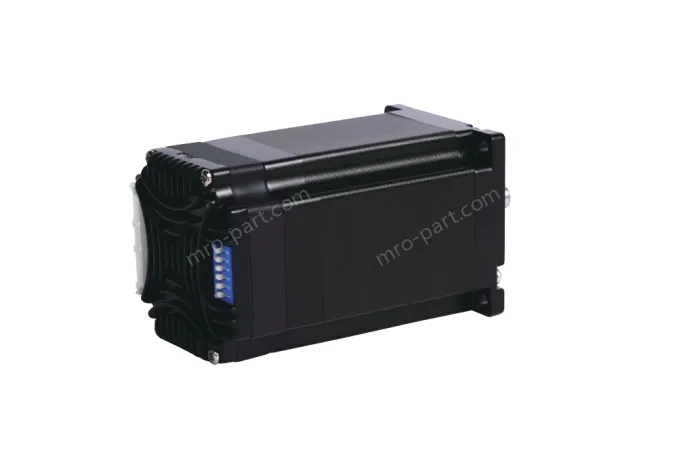

Motor characteristics [※ USB-TTL100 debugging line - to be purchased separately]
Power supply voltage：18-70VDC/24-100VDC
Maintain torque: 6.5N · m
Full loop: 1000 lines (4000 Counts) encoder feedback
Support torque mode [RS485]: collision return, constant torque, and object gripping
Full compatibility of operating modes: [Pulse type] IO control, pulse control
Input compatibility: 5-24VDC, output as collector OC output, withstand voltage of 30VDC
Comprehensive protection: overvoltage, undervoltage, overcurrent, winding open
circuit, position deviation
Non volatile storage: Configuration parameters are stored in the FLASH inside the MCU
Wide filtering frequency range: 50K-5M optional, factory default 300KHz
The maximum speed is 3000 rpm, and the distance exceeds 10000000 laps (200 steps/rev)
