The Star shifting interface converter products include three major series:
Industrial serial optical fiber converter can convert the industrial site RS232/485/422 serial electrical signal into optical fiber signal transmission, to achieve long-distance transmission requirements, improve signal anti-interference ability;
Industrial serial cable converter, to achieve the industrial site RS232 and RS485/422 signals between the conversion, as well as multiple serial bus concentrator function, provide active/passive, isolated/non-isolated and other types of choice;
Industrial serial port repeater can realize the isolation relay function of RS232/485/422 signal in industrial field. By isolating and amplifies the signal, it can extend the communication distance and anti-interference.

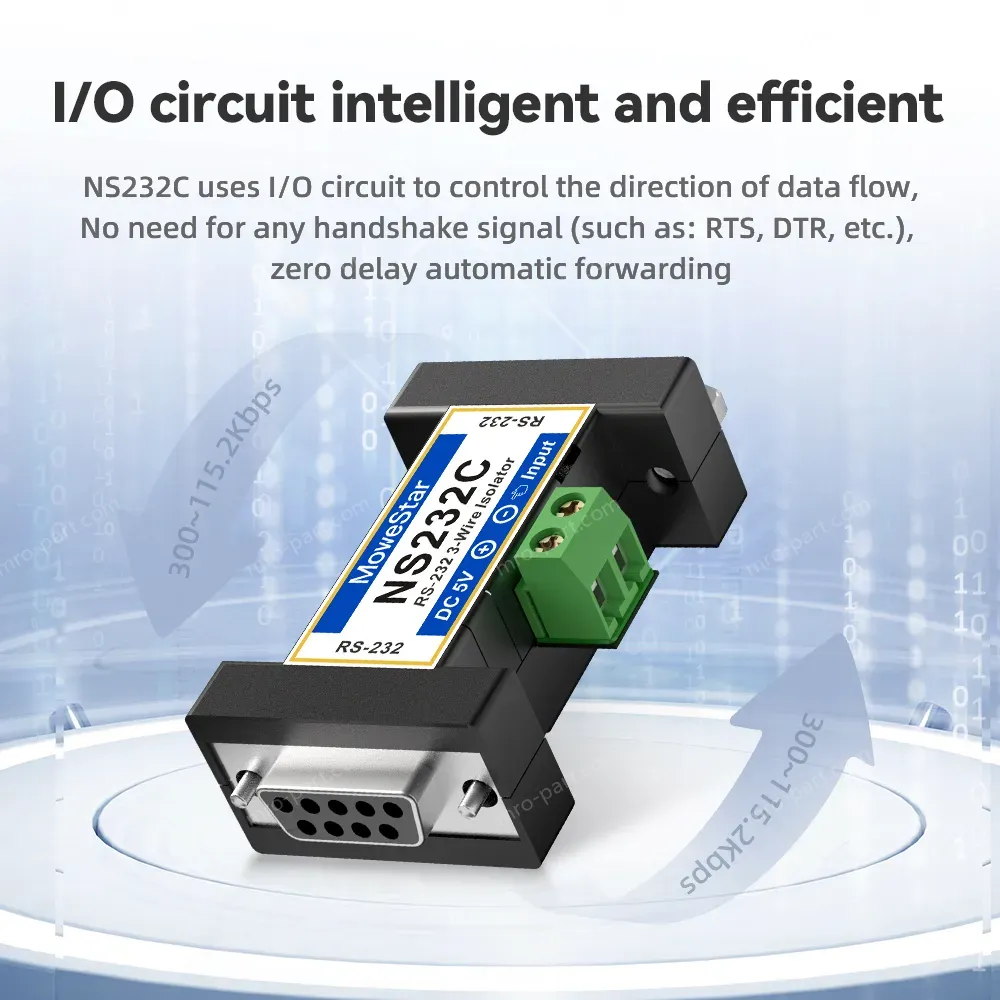

● Signal isolation, transparent transmission, baud Rate self-adaption

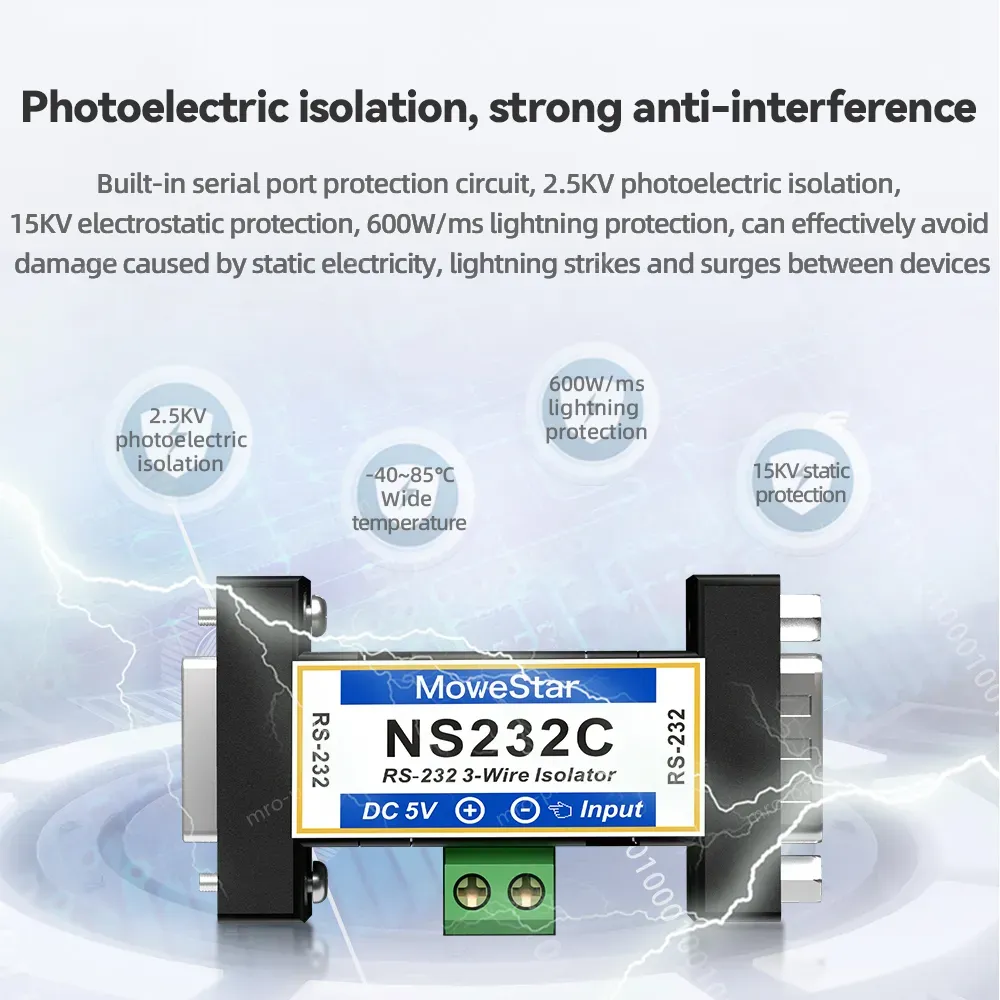

● Serial circuit protection, anti-static protection, lightning protection, surge suppression
● 600W/ms lightning protection, 15KV static protection
● Industrial design, imported components

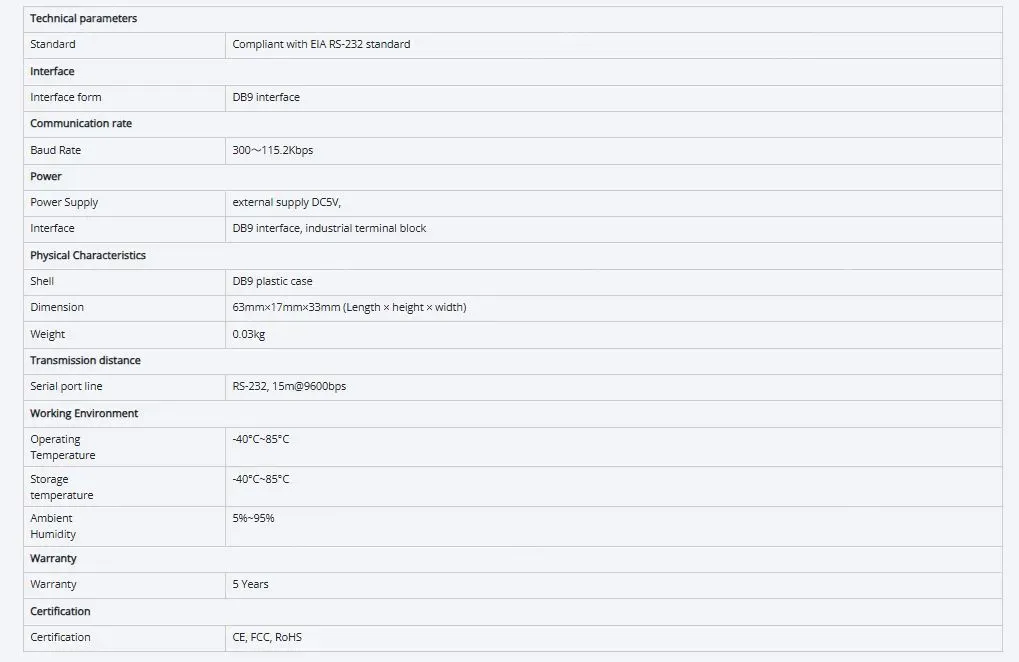

Technical parameters | |
Standard | Compliant with EIA RS-232 standard |
Interface | |
Interface form | DB9 interface |
Communication rate | |
Baud Rate | 300～115.2Kbps |
Power | |
Power Supply | external supply DC5V, |
Interface | DB9 interface, industrial terminal block |
Physical Characteristics | |
Shell | DB9 plastic case |
Dimension | 63mm×17mm×33mm (Length × height × width) |
Weight | 0.03kg |
Transmission distance | |
Serial port line | RS-232, 15m@9600bps |
Working Environment | |
Operating Temperature | -40°C~85°C |
Storage temperature | -40°C~85°C |
Ambient Humidity | 5%~95% |
Warranty | |
Warranty | 5 Years |
Certification | |
Certification | CE, FCC, RoHS |
