Industrial serial port server series products, mainly realize the data transmission between Ethernet and serial port (RS-232/RS-485/RS-422), it integrates the TCP/IP protocol stack, RS-232/RS-485/RS-422 devices that are not connected to the Internet can also be easily, flexibly and quickly connected to Ethernet. The series of products use high-performance ARM chip to ensure stable data transmission; Support a variety of working modes to meet different application requirements; Excellent anti-interference performance, suitable for harsh industrial environments.
● Support 8-way RS232 to Ethernet
● Support Modbus RTU/ASCII to Modbus TCP
● Support TCP Server/TCP Client/UDP/UDP Multicast/Pari Connection/Virtual Serial Port and other work modes.
● Support MQTT on the cloud (Ali MQTT, China Mobile OneNet, Huawei Cloud MQTT, private cloud, etc.), HTTPD, WebSocket and so on.
● Support data forwarding function between serial ports
● Wide temperature range of 40℃~85℃, wide voltage range of 9~36V, EMC level 4 protection

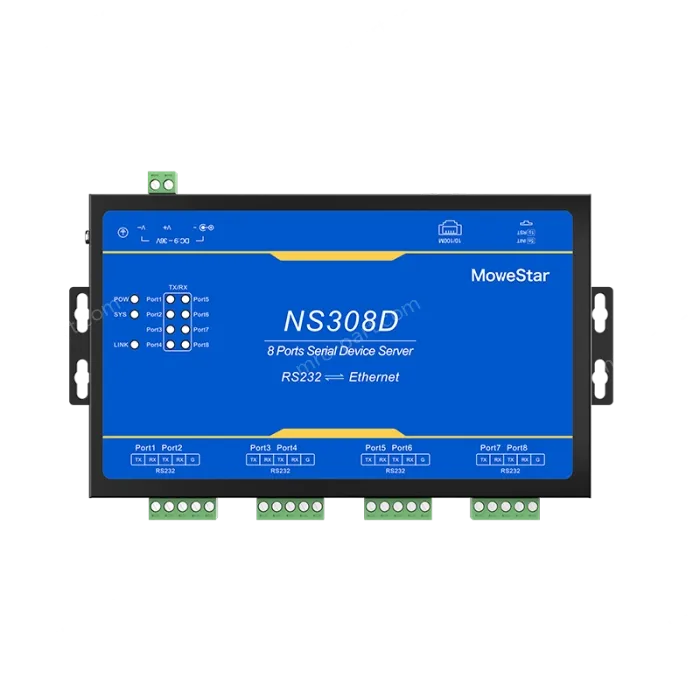

Product model | NS308D | NS308N | |
Function description | Industrial grade non-isolated serial server | ||
Hardware parameters | |||
CPU platform | 32-bit Arm Cortex-M7 core CPU | ||
serial port - the number of ports | 8 RS-232 | 8 RS-485 | |
Serial port-interface form | 5-position 5.08mm pitch industrial grade terminal block | ||
Serial port-communication rate | 600~460800bps | ||
Serial port-data format | Support data bits: 7/8 bits, stop bits: 1/2 bits Parity bit: no parity/ODD odd parity/EVEN even parity | ||
Communication RJ45 network port - the number of ports | 1 channel 10Base-T/100Base-TX, support automatic flow rate control, full-duplex/half-duplex communication | mode and MDI/MDI-X automatic identification | ||
RJ45 network port - isolation protection | 6KV lightning protection, 1.5KV isolation protection | ||
Power supply | External DC: DC9-36VDC | ||
Power consumption | 91mA@12V | ||
ESD | +8kV(contact); ±15kV(air) | ||
degree of protection | Power supply: ±4kV/common mode, ±2kV/differential mode RS232/485: ±4kV/common mode, ±4kV/differential mode Network port: soil 6kV/common mode, soil 2kV/differential mode | ||
EFT | Power supply: soil 4kV Communication port: soil 2kV | ||
Product certification | CE, FCC, ROHS | ||
Dimensions | 207mmX112mmX33mm | ||
Operating temperature | -40°C~+85°C | ||
storage temperature | -40°℃~+85°℃ 5%~95% RH (non-condensing) | ||
Software parameters | |||
Network protocol | IPv4, IP, TCP/UDP, ARP, ICMP, DHCP, DNS, HTTP RFC2217 | ||
How to get IP | Support static IP, DHCP | ||
Configuration method | WEB page configuration | ||
Simple transparent transmission | TCP Server/TCP Client/UDP Client/UDP Multicast/RealCom/ Pair Connection. | ||
Modbus protocol | Modbus RTU/ASCII to Modbus TCP | ||
Serial port data packaging mechanism | The interval time and length can be set; the default value varies according to the bit rate;the maximum packet length is 1460bytes | ||
TCP Server connection | support up to 8 TCP connections | ||
web cache Send | Send: 16Kbyte Receive: 16Kbyte | ||
Serial port cache Send | Send: 1.5Kbyte Receive: 1.5Kbyte | ||
heartbeat packet | Support TCP Keepalive mechanism | ||
RFC2217 | support | ||
average transmission delay | <10ms | ||
