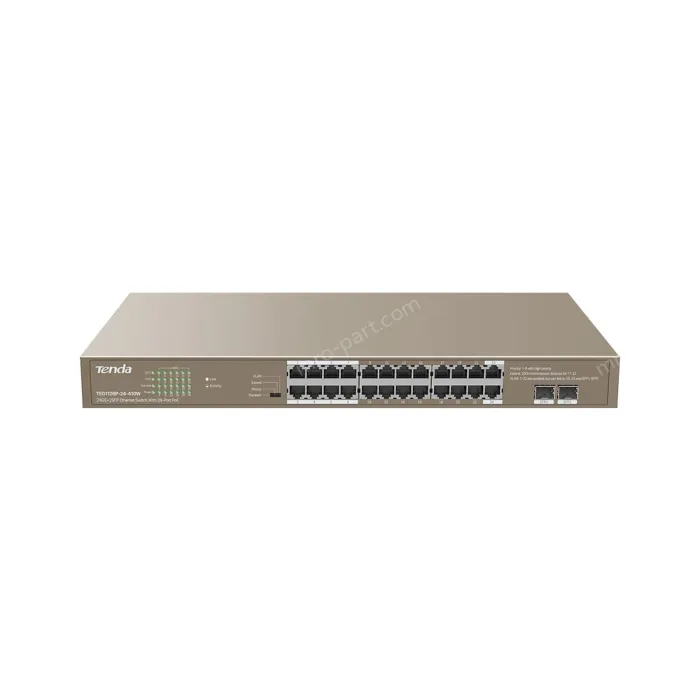

TEG1126P-24-410W is a unmanaged PoE switch independently designed by Tenda. Compliant with IEEE 802.3af and IEEE 802.3at standards, it can identify PoE-powered devices intelligently. With a maximum PoE power output of 370W, and 30W for a single port, it can supply power when transmitting data with APs, IP cameras, and IP phones. The switch supports 4 working modes, including standard, priority, extend and VLAN modes, is an ideal choice for SMBs, hotels, schools, factories with video surveillance and wireless networking requirements.
Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x and IEEE802.3af/at standards.
24 * 100/100 0Mbps Base-T RJ45 ports for data transmission and power supply,2 * 1000 MbpsBase-X SFP slots（Combo）.
8K MAC address table and MAC address auto-learning.
IEEE 802.3x-compliant full-duplex flow control and half-duplex backpressure flow control.
48Gbps backplane bandwidth.
Maximum power consumption of a single port: 30W; Maximum power consumption of the switch: 410W.
4 modes: standard, priority, extend and VLAN.
| Network standards | IEEE 802.3/IEEE 802.3u/IEEE 802.3ab/IEEE 802.3x/ IEEE 802.3af/IEEE 802.3at |
| LED Indicator | 24 * Link/Act LEDs 2 * SFP LED 1 * PoE-MAX LED 1 * Power LED |
| Interfaces | 24*10/100/1000 Base-T ports(Data/Power) |
| Transmission media | Recommended: CAT5/5e UTP or better |
| Fan quantity | 2 |
| Dimension | 440.0mmx284.0mmx44.0mm |
| Level of protection | Lightning protection for ports: 6kV Lightning protection for power: 6kV ESD: Air discharge: ±10kV Contact discharge: ±8kV |
| Forwarding mode | Store-and-forward |
| Switch capacity | 48 Gbps |
| Packet forwarding rate | 35.7Mpps |
| Buffer | 2M |
| MAC address table | 8K |
| PoE budget | Single port: AF: 15.4W, AT: 30W Whole device: 370W |
| Power consumption | / |
| Input voltage | 100-240V AC 50/60Hz |
| Mounting | Desktop mounting: support Wall mounting: support Rack mounting : support |
| Environment | Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Certification | FCC、CE、RoHS |
