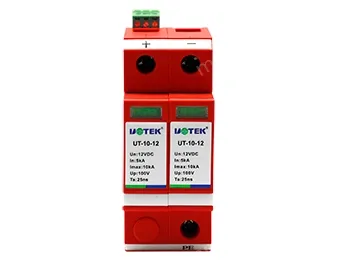

UT-10-12DC power surge protectors are mainly used for C-level protection of DC power distribution systems. They are used to protect electrical and electronic equipment from lightning electromagnetic pulse induced voltages, operating transients and resonance (<100μs) overvoltages. They are widely used in communication equipment, power protection in electrical, electrical appliances, power equipment, security monitoring, transportation, industrial control, aviation and other fields. This series of products has the characteristics of extremely fast response time, built-in thermal protection, low residual voltage, timely tripping, etc., and the flame retardant level reaches V-0 level, which can prevent fires to the greatest extent and provide safety protection.
Model | UT-10-12 |
Operating voltage (Un) | 12VDC |
Max. operating voltage | 24VDC |
Nominal discharge current (In) | 5kA |
Maximum flow capacity (Imax) | 10kA |
Protection level (Up is In) | ≤100V |
Access wire area | ≥4 mm2 |
Remote Signal Definition (Optional) | NC-COM: turn off, COM: common point, NO-COM: turn on |
Failure indication | Green: Normal; Red: Failed |
Response time (tA) | 25ns |
Dimensions | 90*36*65mm |
Protection level | IP20 |
Preposed fuse | 40AgL/gG |
Protection mode | +/PE, -/PE |
Flame retardant level | V0/red |
Installation method | 35mm DIN rail installation |
Operating environment | Temperature -40～+85℃, relative humidity≤95%(25℃), height≤3km |
