Summary

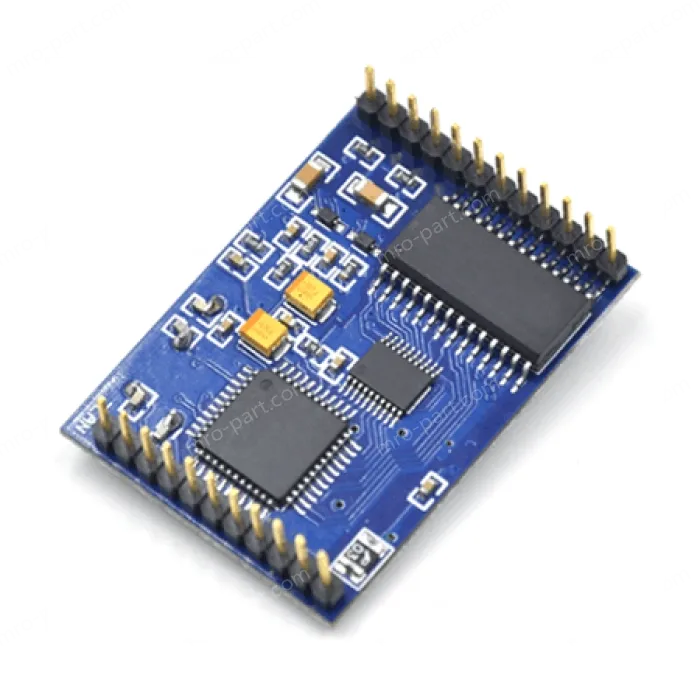

ZLSN2002I is the second generation module with high stability, provide 23 dual pin, pluging in user PCB to use, the module has integrated network transformer, just directly connect the 4 line of RJ45. It has through -40℃～85℃ industrial temperature verification and high anti-electromagnetic interference test, passed ±4KV EFT test, through 5KV/8KV electrostatic discharge verification (Model ZLSN2002I), over-current over-voltage protection, Ethernet surge protection (Model ZLSN2002I), Ethernet grounding protection (Model ZLSN2002I).
Features
- Stable and reliable, support full duplex, high speed, long time data forwarding, not losing packets.
- Working mode: support TCP Server, TCP Client, UDP mode, UDP multicast. Support includes: UDP broadcast, device pair communication, Realcom mode. UDP mode supports simultaneous communication with multiple visitors.
- The baud rate supports 1200~460800bps, and can be customized to special baud rate. The data bits support 5~9 bits, and the check bits can be None, Odd, Even, Mark, and Space, supporting flow control CTS/RTS, DSR/DTR, XON/XOFF, 1~2 stop bits.
- Support virtual serial port, equipped with Windows virtual serial port & device management tool ZLVircom.
- Module parameter modification mode is flexible and varied.
- Support DHCP, DNS and no data restart functions.
- Support read and write for 7 IO pins.
- Economic prices. Bulk customer can give special offer.
- Super small size: 31.75 x 44.45 mm.
- Low power consumption, maximum current is less than 100mA.
- Wide temperature range: support live work under - 40~85 ℃.
Figure
- Interface
- 23 pins in double rows
- Size
- 31.75 × 44.45mm
Communicate Interface
- Ethernet
- 10M/100M self-adaptive,1KV surge protection
- Serial
- TTL×1: RXD, TXD, GND. Interface level 3.3V
Serial Parameters
- Baud rate
- 1200~460800bps
- Parity bits
- None, Odd, Even, Mark, Space
- Data bits
- 5～9
- Flow Control
- RTS/CTS, DSR/DTR, XON/XOFF, NONE
Software
- Protocol
- ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
- Setting method
- ZLVirCom, WEB browser, serial port
- Net communication method
- Socket, Virtual serial
Work Mode
- Work Mode
- TCP server, TCP client, UDP, UDP Multicast
Power Requirement
- Power supply
- 5V DC <100mA
Power Requirement
- Running temp
- -40~85℃
- Storage temp
- -45~165℃
- Humidity
- 5~95%RH
