Overview

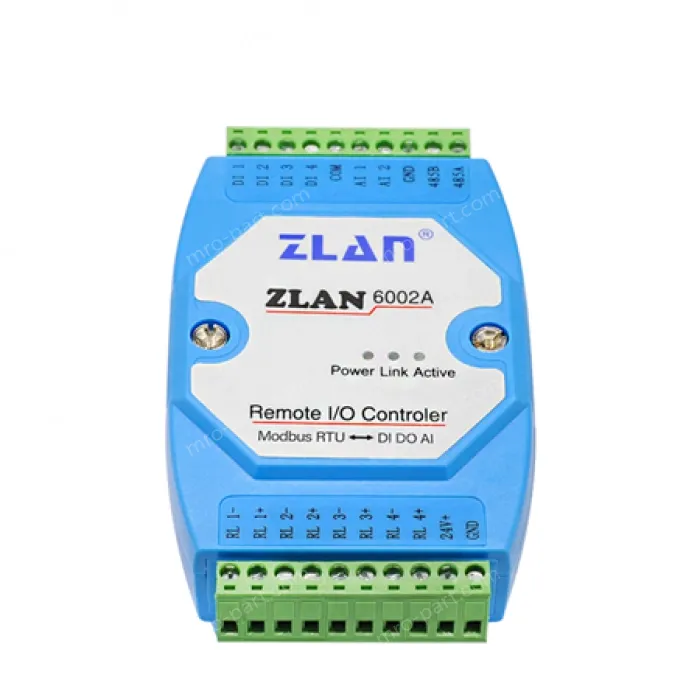

ZLAN6002A is a digital input and output and analog input intelligent device based on RS485. The device can be easily connected to the 485 bus to realize digital and analog switching signal acquisition through RS485 The device has 4 digital inputs, 2 analog inputs and controls 4 relay outputs, and the remote IO control and data acquisition adopt Modbus protocol.
Peculiarity
- 4 digital inputs, compatible with both passive switching (dry node) and active level (wet node).
- 2 analog inputs, including: current input: such as 4~20mA, voltage input: such as 0~5V, 0~10V, resistance: such as 0~10k or resistance type temperature and humidity sensor, etc.
- 4 digital outputs, output type is relay output (5A@AC250V/DC30V)
- RS485 has isolation protection circuitry.
- ZLAN6002A-232 supports RS232 interface.
Shape
- Size
- Length×width× height = 12.2cm×7.2cm×3.4cm
Serial port parameters
- Baud rate
- 1200~115200 (9600bps by default)
- Check digit
- NONE CHECK
- Data bits
- 8 bits
- Stop bits
- 1
Software
- Upper-layer protocols
- MODBUS TCP/ MODBUS RTU
- Underlying communication
- Ethernet, RS485
AI input form
- Current input
- 4~20mA,0~20mA
- Voltage input
- 0~5V，0~10V
- Resistance input
- 0~10K, resistive type temperature and humidity sensor, etc
Power consumption
- Power consumption
- <1.7W <70mA@24V
Working environment
- Operating temperature, humidity
- -40~85℃，5～95% RH
- Storage temperature, humidity
- -45~165℃，5～95% RH
