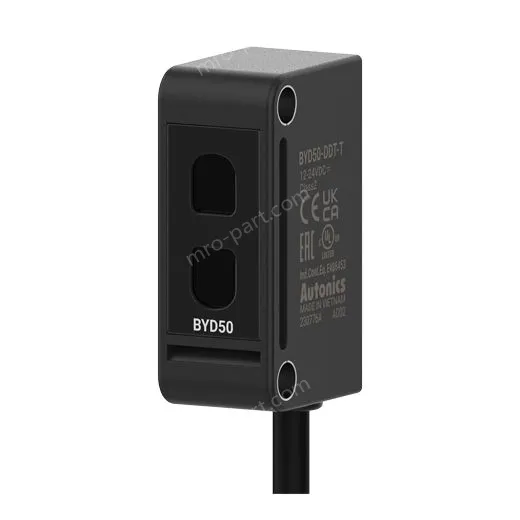

BYD50-DDT-T
The BYD series compact photoelectric sensors with built-in amplifiers offer high performance and value. The compact size and various detection methods make it ideal for various user applications. The sensors are available in through-beam, diffuse reflective, and convergent reflective types. Additionally, BYD30-DDT-U and BYD50-DDT-U models have operation indicators located on the top side for users to better identify operation status.
BYD50-DDT-T
Sensing type Convergent reflective type
Sensing distance 10 to 50mm
Sensing target Opaque, Translucent material
Response time Operation: Max. 3ms, Return: Max. 100ms
Light source Infrared LED
Timer function Timer Function
Operation mode Light ON
Weight Approx. 75g(approx. 38g)
Power supply 12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption Max. 35mA
Control output NPN open collector
Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature -20 to 65℃, storage: -25 to 70℃
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Protection structure IP50
Connection type Cable type(Ø3.5, 2m)
Material Case: PC, sensing part: PC, bracket: SPCC, bolt: SCM, nut: SCM, sleeve: Brass, Ni-plate
Sensing distance 10 to 50mm
Sensing target Opaque, Translucent material
Response time Operation: Max. 3ms, Return: Max. 100ms
Light source Infrared LED
Timer function Timer Function
Operation mode Light ON
Weight Approx. 75g(approx. 38g)
Power supply 12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption Max. 35mA
Control output NPN open collector
Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature -20 to 65℃, storage: -25 to 70℃
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Protection structure IP50
Connection type Cable type(Ø3.5, 2m)
Material Case: PC, sensing part: PC, bracket: SPCC, bolt: SCM, nut: SCM, sleeve: Brass, Ni-plate
