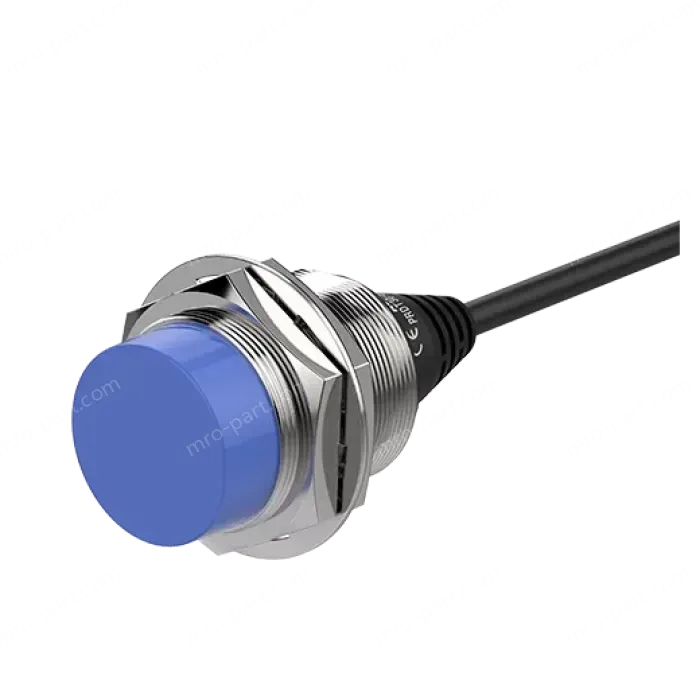

InstallationNon-flush
Sensing side diameterØ30mm
Sensing distance25mm
Hysteresis(distance)Max. 10% of sensing distance
Standard sensing target75×75×1mm(iron)
Response frequency100Hz
Unit weight (packaged weight)≈ 143 g (≈ 180 g)
IndicatorOperation indicator (red LED)
Power supply12 - 24 VDC(ripple P-P: ≤ 10 %), operating voltage: 10 - 30 VDC
Current specificationCurrent consumption: Max. 10mA
Control output≤ 200 mA
Residual voltageMax. 1.5V
Protection circuitSurge protection circuit, output short over current protection circuit, reverse polarity protection circuit
Insulation resistance≥ 50 MΩ (500 VDC megger)
Dielectric strength1,500 VAC~ 50/60Hz for 1 minute
Vibration1.0 mm amplitude at frequency of 10 to 55 Hzin each X, Y, Z direction for 2 hours
Shock500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times
Environment_Ambient temperature-25 to 70 ℃, storage: -30 to 80 ℃ (no freezing or condensation)
Environment_Ambient humidity35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation)
Protection structureIP67(IEC standard)
ConnectionCable type
Cable Standard/materialStandard type cable (black): polyvinyl chloride (PVC)
MaterialCase/Nut: nickel plated brass (DIA. of sensing side Ø 8 mm connector type case: SUS303), washer: nickel plated iron, sensing side: PBT
