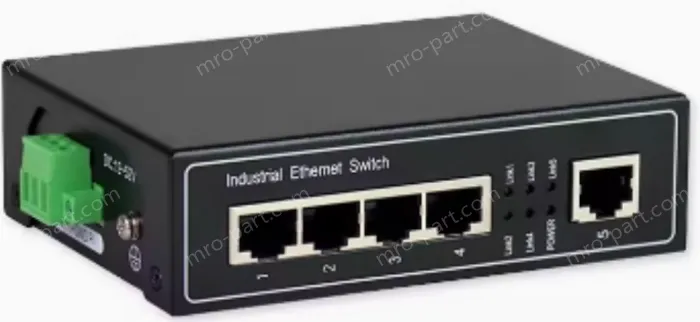

Industrial grade Ethernet switch with 1 100Mbps upstream connection port and 4 100Mbps downstream connection ports, supporting 1 10/100Base TX upstream connection port and 4 10Base-T/100Base TX downstream connection ports. The product complies with FCC, CE, and ROHS standards. The TE605F switch has a working temperature range of -30 to 75 ° C, with strong durability to adapt to various harsh environments, and can also be conveniently placed in compact control boxes. The installation characteristics of the guide rail, wide temperature operation, and the IP40 protection level of the housing and LED indicator light make TE605F a plug and play industrial grade device, providing a reliable and convenient solution for users' Ethernet device networking.
Model No. | TE605F |
10/100BASE-TX Port | 5 port RJ-45 auto-MDI / MDI-X |
Performance Specification | Bandwidth: 1.6Gbps |
Installation | DIN rail |
Maximum Frame Size | 9000bytes packet size |
Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
Enclosure | Steel alloy |
Power Input | 12 to 52V DC redundant power |
Power Consumption | 3 watts max |
Surge protection | ±4KV |
Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; |
Network cables | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100meter) |
Industry Standard | FCC CFR47 Part 15,EN55022/CISPR22, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air) IEC61000-4-3 (RS): 10V/m (80~1000MHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
Certification | CE FCC Rohs compliance |
MTBF | >300,000hours |
Dimensions (W x D x H) | 118 x 86 x 33.5 mm |
Weight | Product Weight: 0.36KG Packing Weight: 0.46KG |
Working Environment | Working temperature: -40 – 75℃ Storage temperature: -40 – 75℃ Relative Humidity: 5%~95 %( no condensation) |
Warranty | 1-year replacement with new item; 3-years for main parts. |
